Clean Two Sets of Parts Simultaneously — Faster Throughput, Smaller Footprint.

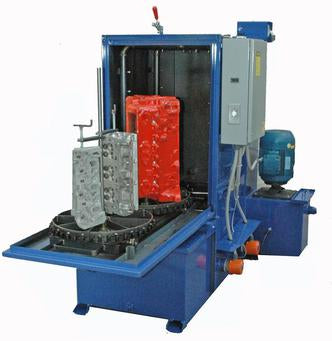

The AXE Equipment 2x2 Series Spraywasher is engineered for shops that need to maximize cleaning throughput without the footprint of a large single-turntable machine. Its exclusive 2-wheel drive design runs dual 20" rollout turntables simultaneously, letting you run two separate cleaning loads per cycle — ideal for light-duty and heavy-duty shops alike.
- Dual 20" rollout turntables, direct sprocket drive — two loads cleaned per cycle with smooth, consistent rotation guaranteed throughout the wash
- 32" vertical cleaning height, 400 lb. capacity per turntable — handles a wide range of automotive and light industrial components
- 7.5 HP pump delivering 165 GPM @ 55 PSI through twin spray manifolds with 34 alternating nozzles for thorough coverage
- Lay-down door with rollout turntables — easy loading and unloading; door returns excess solution to the reservoir, keeping the shop floor drier and safer
- Built-in hot tank standard on both models for added cleaning capacity on heads, intakes, and cranks
- Available in Electric or Gas with optional Extended Front Hot Tank and Insulation Package
Which Configuration Is Right for You?
Choose Model SW2-20-OS for a compact footprint with a standard 12" x 24" hot tank basket.
Choose Model SW2-20-HT for a larger 21" x 30" hot tank basket — better suited for heads, intakes, and larger components.
Add the Extended Front Hot Tank for increased hot tank capacity, or the Insulation Package to improve heat retention and reduce operating costs in cold environments.
Ready to order or need help selecting a configuration? Contact us to request a quote →
Optional Accessories
| Specification | Model SW2-20-OS | Model SW2-20-HT |
|---|---|---|
| WORK CAPACITY | ||
| Height | 32" | 32" |
| Turntable Diameter | 20" Rollout qty 2 | 20" Rollout qty 2 |
| Load Weight | 400 lbs | 400 lbs |
| FLOOR SPACE REQUIRED | ||
| Height | 66" | 66" |
| Width | 44" | 48" |
| Length: Door Open | 87" | 87" |
| Length: Door Closed | 67" | 81" |
| Loading Height | 27" | 27" |
| CLEANING SYSTEM | ||
| Solution Capacity | 90 Gallons | 115 Gallons |
| Pump Motor | 7.5 HP | 7.5 HP |
| Pump Output | 55 psi @ 165 gpm | 55 psi @ 165 gpm |
| Spray Nozzles | 34 alternating | 34 alternating |
| Manifold Size | 1.50" | 1.50" |
| Filter Screen | 695 sq" | 1290 sq" |
| Turntable Drive | Sprocket Driven | Sprocket Driven |
| CABINET CONSTRUCTION | ||
| Tank Construction (gauge steel) | 12 | 12 |
| Steam Vent | 6" | 6" |
| Gas Vent | 4" | 4" |
| HEAT SOURCE | ||
| Electric Heat | 15 KW (2) 7.5 KW Elements | 15 KW (2) 7.5 KW Elements |
| Gas Burner | 80,000 BTU | 100,000 BTU |
| HOT TANK BASKETS | ||
| Dimensions | 12" x 24" x 11" | 21" x 30" x 11" |
| ELECTRICAL REQUIREMENTS | ||
| 7.5 HP Pump Motor (3 Phase) — 208v | 25.3 amps | 25.3 amps |
| 7.5 HP Pump Motor (3 Phase) — 230v | 22 amps | 22 amps |
| 7.5 HP Pump Motor (3 Phase) — 460v | 11 amps | 11 amps |
| Electric Heat (3 Phase) — 208v | 41.6 amps | 41.6 amps |
| Electric Heat (3 Phase) — 230v | 37.7 amps | 37.7 amps |
| Electric Heat (3 Phase) — 460v | 18.8 amps | 18.8 amps |
| Gas Burner (1 Phase) — 120v | 2.5 amps | 2.5 amps |
| Drive Motor (1 Phase) — 120v | 0.60 amps | 0.60 amps |
| STANDARD EQUIPMENT | ||
| Low Water Switch | Yes (electric heat) | Yes (electric heat) |
| Dual 7 Day Timers | Yes | Yes |
| Digital Temp Controller | Yes | Yes |
| Dual 20" Diameter Turntables | Yes | Yes |
| Auto Air Inducer | Yes | Yes |
| Adjustable Head Rack | Yes | Yes |
| OPTIONS | ||
| Electric Heat (460v) | 17 amps | 17 amps |
| 7.5 HP Pump (1 Phase, 240v) | 40 amps | 40 amps |
| Electrical Heater (1 Phase, 230v) | 65.2 amps | 65.2 amps |
| Turntable Basket | 20" | 20" |
| Hand Basket | 12" x 12" x 8" | 12" x 12" x 8" |
| Parts Basket with Lid | 12" x 12" x 5" | 12" x 12" x 5" |
| Parts Basket with Lid | 10" x 10" x 4" | 10" x 10" x 4" |
| Oil Skimmer | Available | Available |
| Boom/Crane Assy with Trolley | Available | Available |
| Gas Burner Cover | Available | Available |
| Amperage Saver (Electric Only) | Available | Available |
| Insulation Package | Available | Available |
| SHIPPING WEIGHT | ||
| Total Weight | 1040 lbs | 1320 lbs |
