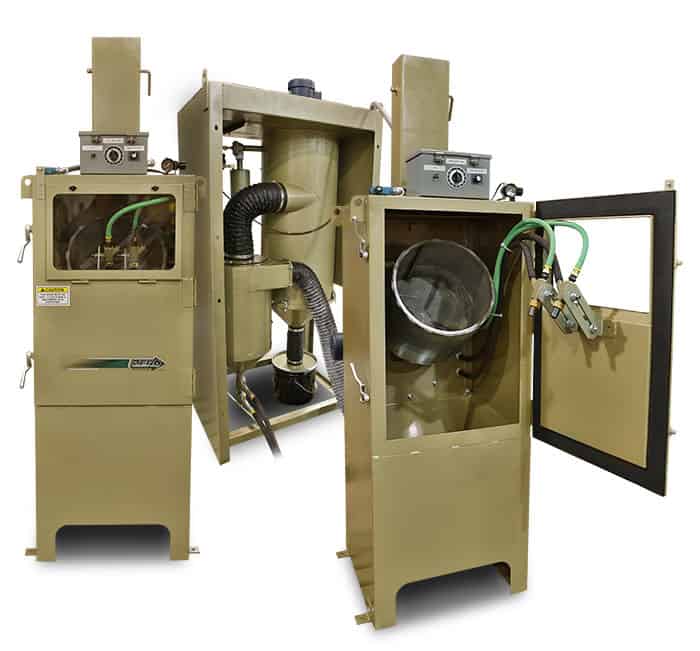

4-Gallon Tumble-Basket Blast Cabinet
Complete, High-Production Cabinet System with a Compact Footprint
Blast batches of parts up to 35 lbs with this suction cabinet that provides consistent parts coverage, easily switches between different media, and is far more efficient than manual blasting.
The cabinet’s detached 300 CFM power module with a pull-thru reclaimer and a reverse-pulse dust collector, combined with the cabinet’s compact footprint, allow for versatile configurations in tight work areas. In addition, the machine’s front-facing basket opening creates a cascading, as opposed to an up-down, tumbling movement of parts, which reduces part-on-part impingement.
The cabinet is constructed from 14ga steel and offers numerous other features that make it a versatile, rugged, and efficient automated cabinet. Use it to finish batches of medical or additive-manufactured parts, deburr aerospace investment castings, surface prep firearms or general-industry hardware, or blast parts in many other industries. Whatever your blasting application, the ZERO® 4-Gallon Tumble-Basket Cabinet makes your life easier.
The Tumble Basket
The basket’s four-gallon capacity holds batches of parts up to 35 lbs. Its variable-speed can operate from 1 to 15 rpm, and it features a 0-60 minute, manually set, blast-cycle timer.
Removable-Basket Specifications
- 16” diameter x 13” deep
- 10ga x 1/8” perforated steel body
- 3/8” steel-barrel end plate
Basket-Drive Specifications
- 1/4 HP
- 115V, 1 PH, 60 Hz
- DC motor and 100:1 gear reducer coupled to a 1” diameter drive shaft
Blast Cabinet Enclosure
The enclosure is constructed from 14ga steel. It features a safety door interlock and a quick-change, tilt-out view window. The enclosure door swings open to allow unobstructed loading and unloading of parts, as well as simplified barrel removal.
300 CFM Suction Power Module
The detached power module includes a dust collector and reclaimer.
Dust Collector
The 300 CFM dust collector features a reverse-pulse cartridge with a 1/2-HP exhauster, a dust drum, and auto-pulse cartridge cleaning, which extends the service life of the cartridge.
Media Recovery System
The 300 CFM pull-thru reclaimer has light-lined conveying hose, a quick-removal debris screen, and rubber-lined wear plates.
Suction Blast Gun System
Two cast-steel gun bodies are stud-mounted onto the cabinet door. This door mounting eases blast-gun maintenance, unlike similar competitor models that attach guns to the interior cabinet roof. Each gun is equipped with a No. 5 (5/16”) tungsten nozzle and has a BNP cast-aluminum, adjustable metering valve.
Specifications
- 5/32” adjustable air jets
- Requires 64 cfm at 80 psi
Common Applications
Process sturdy or delicate parts up to 4” long for numerous industries, including:
- Firearms—Slides, springs, and mechanism hardware
- General Industry—Hardware and fasteners
- Medical—Screws and small medical tools
