Heavy-Duty Cleaning for Passenger Car & Light Duty Diesel Engines

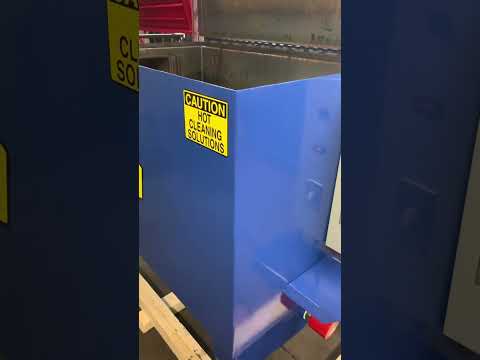

When you need to clean passenger car and light duty diesel engine blocks, cylinder heads, oil pans, and more, the AT-20 and AT-25 agitating hot tanks get the job done right. AXE Equipment's exclusive impeller design delivers remarkable agitation that, combined with high temperatures, cuts through grease and grime fast — giving you professional cleaning results at a price that works for your shop.
Both models are fully insulated for superior heat retention and energy efficiency, and feature a spring-loaded lid for easy loading and unloading of parts. Choose from Gas or Electric heat to match your shop's setup.
- Exclusive impeller agitation for deep, thorough cleaning
- Available in 200-gallon (AT-20) and 250-gallon (AT-25) capacities
- Gas or Electric heat options
- 12,000-watt electric heater (230V 3-phase) or 85,000 BTU gas burner
- 1 HP agitation motor (230–460V)
- Full insulation with 16-gauge covering for energy efficiency
- Spring-loaded lid for easy part loading and unloading
- 7-day timer included
- Optional basket with lift bar and H-20 hoist available
Have questions or need help choosing between the AT-20 and AT-25? Contact us — we're happy to help you find the right fit for your shop.
Specifications
| SPECIFICATION | AT-20 | AT-25 |
|---|---|---|
| Floor Space | 37"W X 80"L X 44"H | 37"W X 80"L X 50"H |
| Inside Tank | 30"W X 48"L X 24"H | 30"W X 48"L X 30"H |
| Loading Height | 37" | 42" |
| Solvent Depth | 18" | 24" |
| Solution Capacity | 200 gallons | 250 gallons |
| Tank Construction | 12 gauge | 12 gauge |
| Grate Construction | 9/16" rod x 1/4" X 3/4" flat | 9/16" rod x 1/4" X 3/4" flat |
| Insulation | 1" | 1" |
| Insulation Covering | 16 gauge | 16 gauge |
| Electric Heater | 12,000 Watts | 12,000 Watts |
| Heater Voltage | 230 V 3 Phase | 230 V 3 Phase |
| Heater Amp Draw | 29 amps | 29 amps |
| Gas Burner | 85,000 btu | 85,000 btu |
| Motor Size/Voltage | 1 hp = 230-460 | 1 hp = 230-460 |
| Motor Amp Draw | 3.0-1.5 amps | 3.0-1.5 amps |
| Agitation Pumps | One | One |
| Shipping Weight | 800 LBS | 800 LBS |
| Basket w/Lift Bar | Optional | Optional |
| OPTIONS | ||
| Electric Heater – 1 Phase | 12 kW – 52 amps | 12 kW – 52 amps |
| Electric Heater – 460V | 12 kW – 17 amps | 12 kW – 17 amps |
| Motor 1 Phase | 1 hp = 7.0 amps | 1 hp = 7.0 amps |
| Hoist (Telescopic Boom) | H-20 | H-20 |
| Basket w/Lift Bar | 22"W X 28"L X 8"D | 22"W X 28"L X 8"D |
| Parts Basket | 8"W X 12"L X 12"D | 8"W X 12"L X 12"D |
