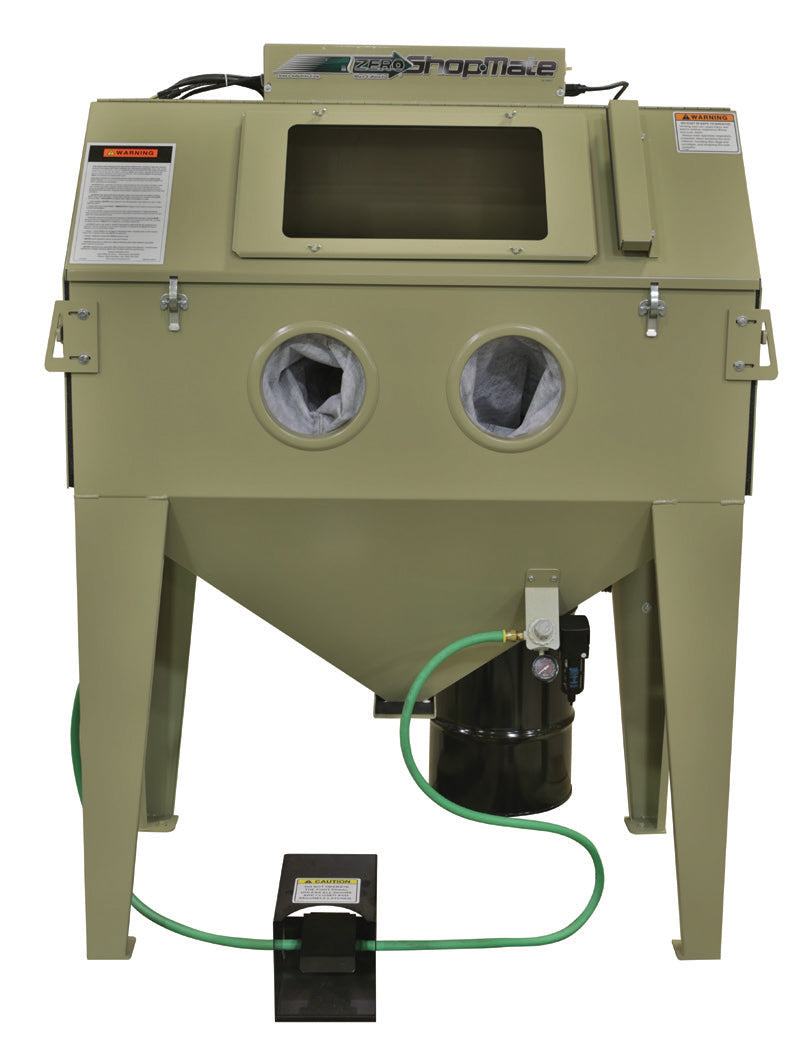

ShopMate Blast Cabinet

The Shop Mate^TM is a hopper suction feed entry-level intermittent-use cabinet featuring a 48” wide x 26” deep x 26” high working chamber with dual side doors, and flip up front access panel for loading heavy parts. A 120 cfm dust bag drum collector optimizes visibility inside the cabinet while blasting.

Although the Shop Mate^TM does not have a media reclaimer, it has a spring-operated quick-drain hopper designed to accommodate a standard-size 5-gallon bucket. This feature makes disposing of worn-out media a quick, simple, and clean process. Optional drum-liner bags ease the disposal process.

The Shop Mate^TM comes with a No. 4 BNP^® Gun with a 5/16” orifice ceramic nozzle, but can be used with long- wearing tungsten-carbide or boron-carbide nozzle when aggressive media is used.

A conveniently located easy to use lens-on-a-roll prolongs the life of the view window glass, protecting its interior surface.

Features

• High Output Fluorescent Lighting
• Large Safety Glass Viewing Window
• 14-gauge Steel Construction
• Two Side Doors
• Front Access Panel
• Pedal Activated BNP^® Blast Gun
• Neoprene-On-Fabric Gloves
• Pressure Gauge & Regulator
• Moisture Trap

Specifications

• Blast Gun: No. 4 BNP^® Gun with 5/16” orifice ceramic nozzle
• Air Consumption: 21 cfm @ 80 psi Electrical: 115V, 1PH, 60Hz
• Dust Collector: 120 cfm Dust Bag in Drum Cabinet Work Grating: 500 lb Uniform Load Amp Draw: 8
• Working Chamber Size: 48” wide 26” deep 26” high
• Viewing Area:18.5” wide 10.5” height
