Production-Scale Parts Cleaning — Four Turntables. One Cycle.
The AXE Equipment Fatboy 4x4 Series is built for high-volume shops that need to clean multiple engines, heads, or assemblies simultaneously. Powered by a 15 HP pump pushing 225 gallons of hot cleaning solution through twin 2" manifolds and 56 alternating nozzles, the 4x4 Series delivers industrial-grade throughput in a single machine.
- 32" vertical cleaning capacity, 225-gallon solution tank — sized for production-volume cleaning of complete assemblies and large components

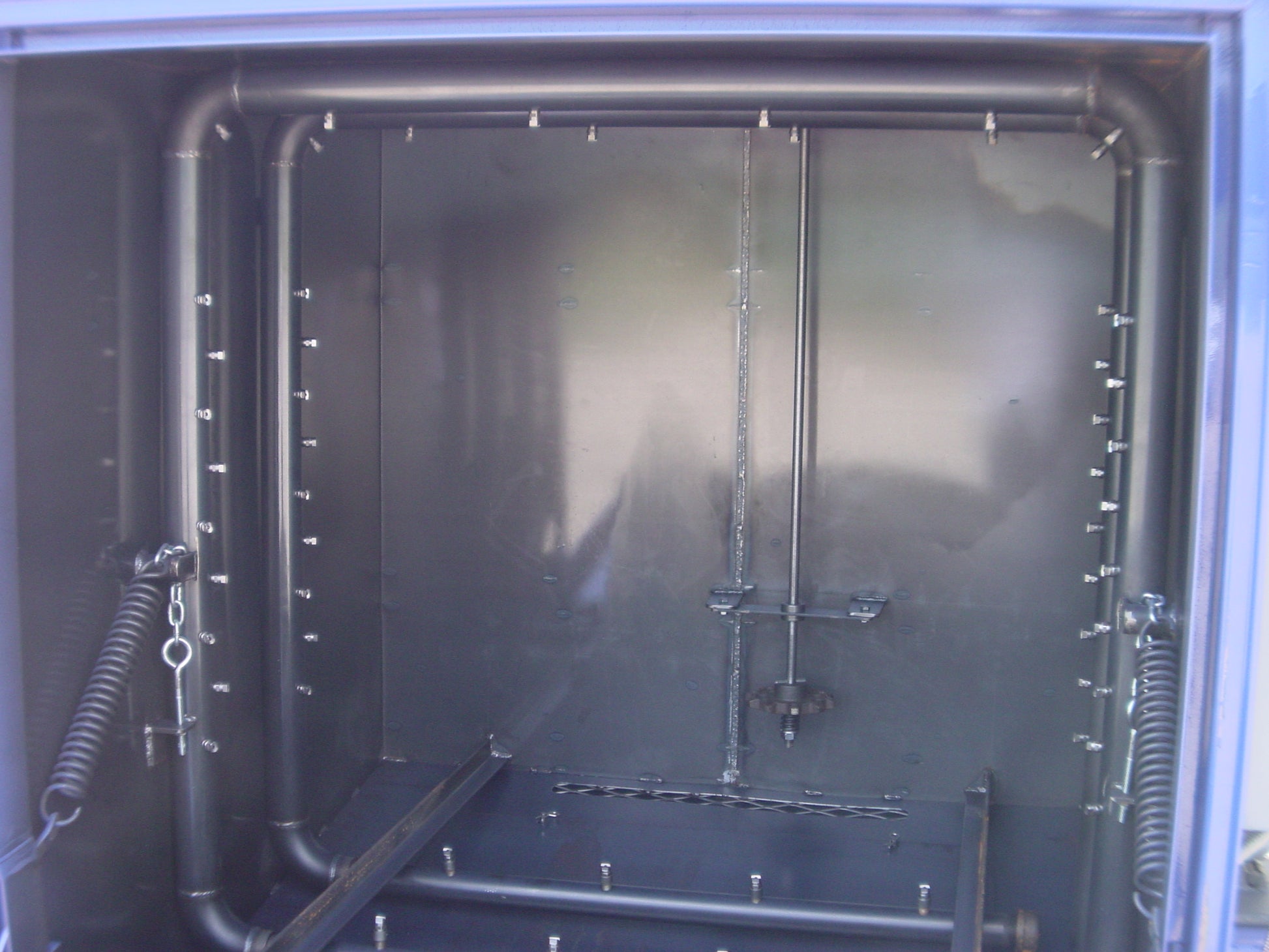

- 15 HP pump with twin 2" manifolds and 56 alternating nozzles for high-flow coverage across all turntables simultaneously

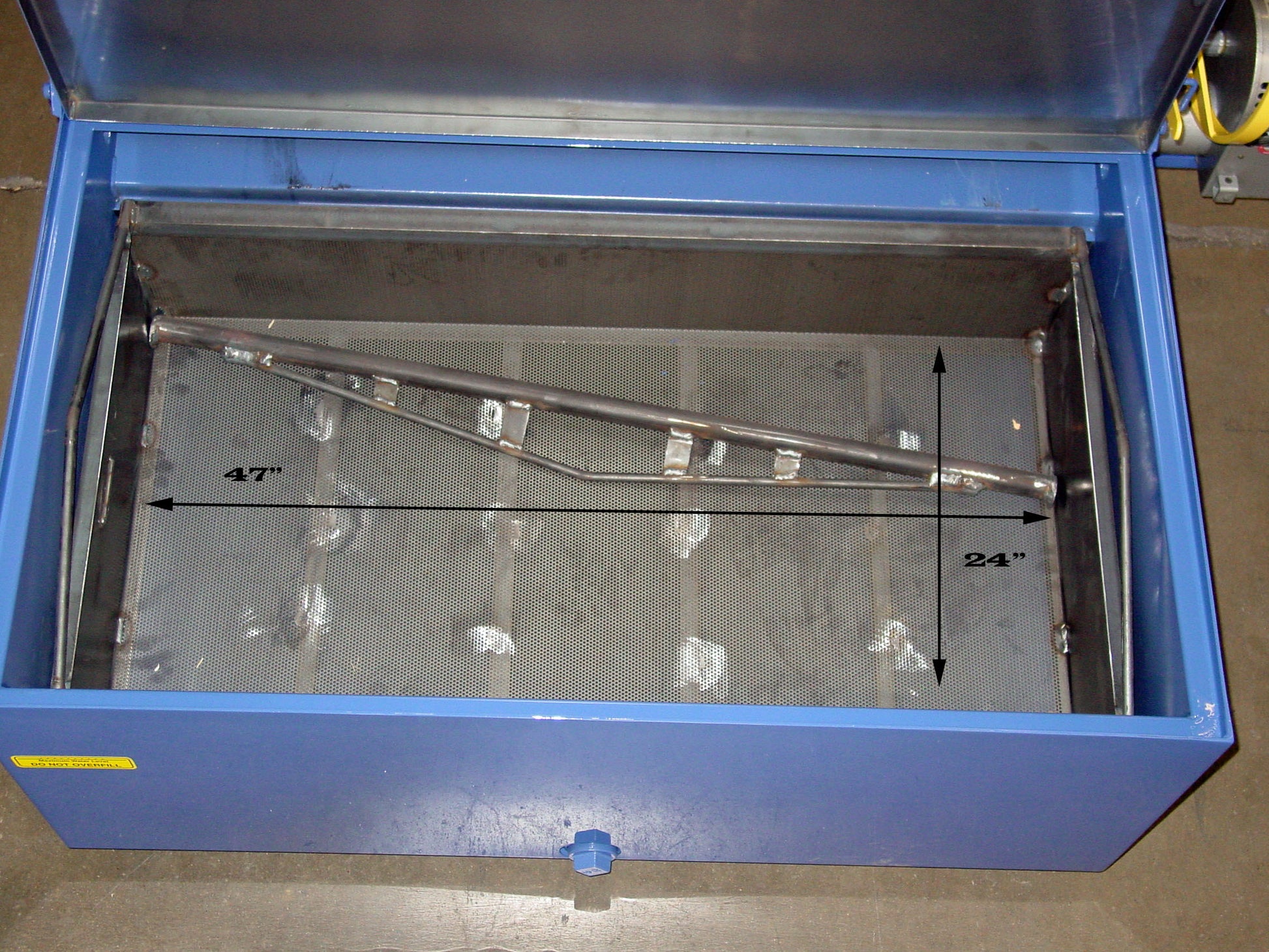

- Built-in 24" x 47" x 11" hot tank included standard for pre-soaking heads, intakes, and other components
- Full insulation package standard on all 4x4 models for improved heat retention and lower operating costs
- Available in Electric or Gas heat source to match your facility's utilities
Choose Your Turntable Configuration

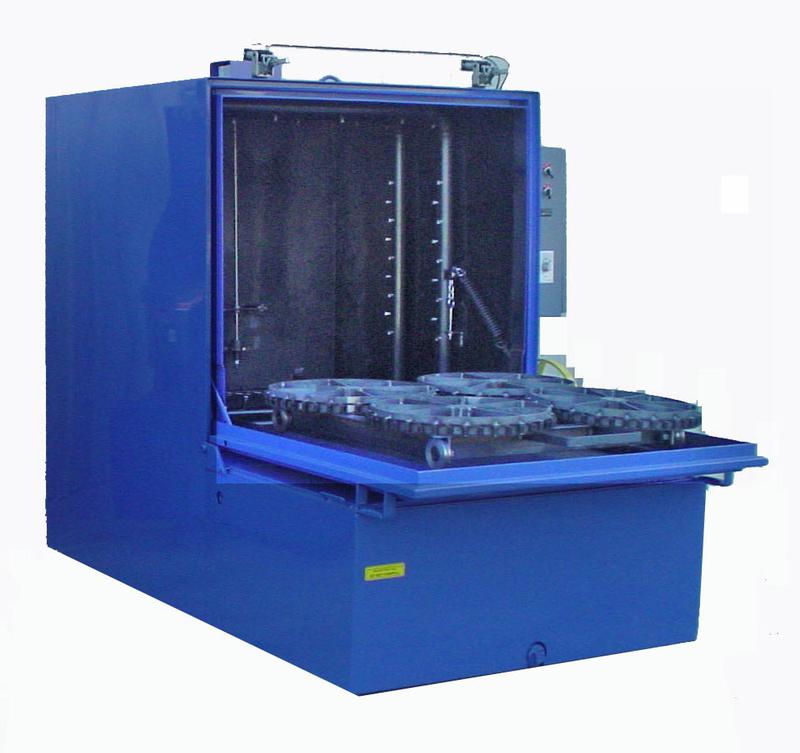

4 x 20" Turntables (SW4-2032): Four independent 20" rollout turntables each rotate 360° independently, giving full spray coverage to each load. Clean up to 12 cylinder heads, 4 V-8 blocks, or 4 inline blocks per cycle — ideal for high-volume engine rebuilders and production cleaning operations.
1 x 40" Turntable (SW-2032): A single 40" diameter rollout turntable with a 2,000 lb. load capacity handles wide components up to 40" across. Cam follower corner supports keep the table rotating evenly under off-center loads — ideal for salvage yards, electrical rebuilders, and shops cleaning large or wide assemblies.
Ready to order or need help selecting a configuration? Contact us to request a quote →
Optional Accessories
| Specification | SW4-2032 | SW-4032 |
|---|---|---|
| WORK CAPACITY | ||
| Height | 32" | 32" |
| Turntable Dia. | (4) 20" Tables | (1) 40" Table |
| Load Weight | 500 lbs. Ea. Turntable | 2000 lbs |
| FLOOR SPACE REQUIRED | ||
| Height | 74" | 74" |
| Width | 69" | 69" |
| Length (With Door Open) | 103" | 103" |
| Length (With Door Closed) | 84" | 84" |
| Loading Height | 34" | 34" |
| SHIPPING WEIGHT | ||
| Shipping Weight | 3000 lbs. | 3035 lbs |
| CLEANING SYSTEM | ||
| Solution Capacity | 225 gals. | 225 gals. |
| Pump Motor | 15 HP | 15 HP |
| Pump Output | 80 psi @ 280 gpm | 80 psi @ 280 gpm |
| Spray Nozzles | 56 | 56 |
| Filter Screen | 3000 sq." | 3000 sq." |
| CABINET CONSTRUCTION | ||
| Gauge Steel | 12 gauge / 16 gauge outer | 12 gauge / 16 gauge outer |
| Steam Vent | 6" | 6" |
| Gas Vent | 6" | 6" |
| Insulation | 1" | 1" |
| HEAT SOURCE | ||
| Electric Element | 21.5 KW | 21.5 KW |
| Gas Burner | 225,000 btu | 225,000 btu |
| HOT TANK BASKETS | ||
| Inside Dimensions | 24" x 47" x 11" | 24" x 47" x 11" |
| ELECTRICAL REQUIREMENTS | ||
| Pump Motor 3 Phase | 208/230/460 Volts — 49 / 42 / 21.0 amps | |
| Electrical Heat 3 Phase | 208/230/460 Volts — 60 / 54 / 27.0 amps | |
| STANDARD EQUIPMENT | ||
| Hot Tank Basket and Lift Bar | Yes | Yes |
| Head Rack | Yes | NO |
| Dual 7 Day Timers | Yes | Yes |
| Digital Temp Controller | Yes | Yes |
| Auto Air Inducer | Yes | Yes |
| Liquid Level Controller | Yes (Electric heated only) | |
| Pneumatic Door Clamps | Yes | Yes |
| Mechanical Rollout Turntable | Yes | Yes |
