Heavy-Duty Parts Cleaning for Rebuilders and Production Shops.
The Ultimate SW-50 is a high-capacity combination spraywasher and hot tank built for shops that handle both heavy-duty and light-duty cleaning. Its 50" vertical spray chamber, 28" diameter turntable, and 1,500 lb. load capacity provide the working room needed for large diesel blocks, engine components, and demanding rebuild work.
- 50" vertical spray chamber with a 28" turntable — accommodates large diesel blocks and oversized components
- 1,500 lb. load capacity — built to handle heavy-duty parts and production workloads
- 10 HP pump delivering 140 GPM of hot cleaning solution for fast, efficient cleaning
- 24 alternating spray nozzles and the Ultimate's 360° manifold provide thorough coverage throughout the chamber
- Spring-loaded lay-down door with rollout turntable — simplifies loading and unloading while helping keep the shop floor drier and cleaner

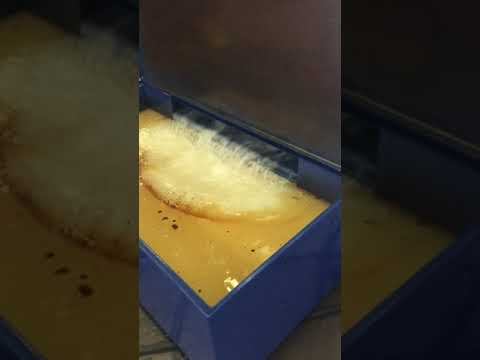

- Front-mounted hot tank available in three sizes — choose the configuration that fits your parts and workflow
- Standard tooling includes clamping fixtures for cylinder heads, intakes, cranks, and other components
Which Model Is Right for You?
Choose Electric or Gas based on your facility's available utilities and heating requirements.
Add the Extended Front Hot Tank for a wider 24" I.D. basket, compared with the standard 13" I.D. basket.
Choose the Extra Wide Extended Front Hot Tank when you need the maximum 55" basket length for larger or longer components.
Ready to order or need help selecting a configuration? Contact us to request a quote →
Optional Accessories
| Specification | SW-50R | SW-50HT | SW-50EX |
|---|---|---|---|
| WORK CAPACITY | |||
| Height | 50" | 50" | 50" |
| Turntable Dia. | 28" | 28" | 28" |
| Load Weight Capacity | 1,500 LBS | 1,500 LBS | 1,500 LBS |
| FLOOR SPACE REQUIRED | |||
| Height | 93" | 93" | 93" |
| Width | 57" | 57" | 73" |
| Length: Door Open | 98" | 98" | 98" |
| Length: Door Closed | 57" | 68" | 68" |
| Turntable Height (Above Floor) | 32" | 32" | 32" |
| SHIPPING WEIGHT | |||
| Shipping Weight | 2,100 LBS | 2,400 LBS | 2,800 LBS |
| CLEANING SYSTEM | |||
| Solution Capacity | 110 gals. | 140 gals. | 160 gals |
| Pump Motor | 10 HP | 10 HP | 10 HP |
| Pump Output | 80 psi @ 140 gpm | 80 psi @ 140 gpm | 80 psi @ 140 gpm |
| Spray Nozzles | 24 alternating | 24 alternating | 24 alternating |
| Filter Screen | 1200 sq." | 1450 sq." | 2530 sq." |
| CABINET CONSTRUCTION | |||
| Gauge Steel | 12 gauge | 12 gauge | 12 gauge |
| Insulation | 1" fiberglass | 1" fiberglass | 1" fiberglass |
| Steam Vent | 6" | 6" | 6" |
| Gas Vent | 6" | 6" | 6" |
| HEAT SOURCE | |||
| Electric Element | 12 kW | 12 kW | 15 kW |
| Gas Burner | 100,000 BTU | 100,000 BTU | 150,000 BTU |
| HOT TANK BASKETS | |||
| Width (I.D.) | 13" | 24" | 24" |
| Length (I.D.) | 34" | 34" | 55" |
| Depth (I.D.) | 11" | 11" | 11" |
| ELECTRICAL REQUIREMENTS | |||
| Pump Motor 3 Phase | 208/230/460 Volts — 25-24-12 Amps | ||
| Electrical Heat 3 Phase | (12 KW) 208/230/460 Volts 33-29-17 Amps |
(12 KW) 208/230/460 Volts 33-29-17 Amps |
(15 KW) 208/230/460 Volts 41-37-19 Amps |
| Electric Heater 1 Phase | (12 KW) 230 Volts 52 Amps |
(12 KW) 230 Volts 52 Amps |
(15 KW) 230 Volts 65 Amps |
| STANDARD EQUIPMENT | |||
| Low Water Switch | STANDARD | ||
| Dual 7 Day Timers | STANDARD | ||
| Digital Temp Controller | STANDARD | ||
| Head Rack / Crank Rack | STANDARD | ||
| Auto Air Inducer | STANDARD | ||
| Short Circuit Protection | STANDARD | ||
| Thermal Protection | STANDARD | ||
| Lay Down Door / Sealess | STANDARD | ||
| V-Bottom Floor | STANDARD | ||
| Built In Hot Tank | STANDARD | ||
| 360 Degree Manifold | STANDARD | ||
| Pneumatic Door Clamp | STANDARD | ||
| Warranty | ONE YEAR | ||
